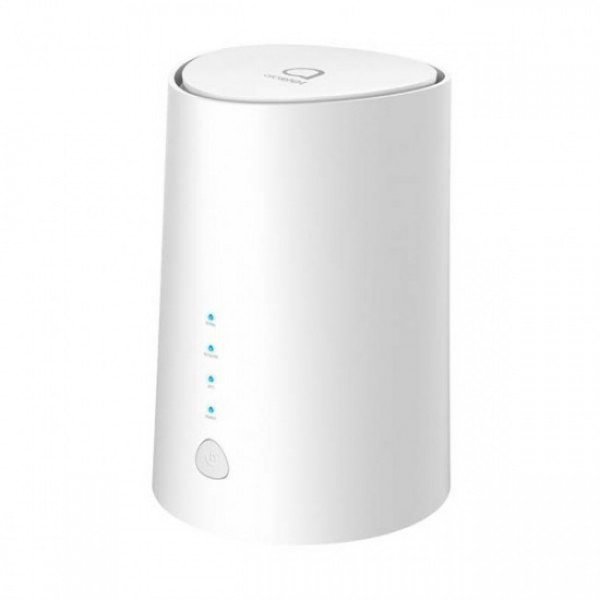

4G+ maršrutizatorius Alcatel LinkHub HH71VM

Technical Specifications

Mobile Network

 LTE FDD B1/3/7/8/20/28/32 (2100/1800/2600/900/800/700/1500 MHz)

 LTE TDD B38 (2600 MHz)

 UMTS B1/3/8 (2100/1800/900 MHz)

 GSM (850/900/1800/1900 MHz)

 LTE CA DL 1A+8A, 1A+1A, 7A+7A, 1A+28A, 1A+20A, 1A+7A, 3A+20A, 3A+7A, 3A+3A, 3C, 3A+28A, 7A+28A, 3A+8A, 20A+32A, 7A+8A, 7A+20A

 LTE CA UL B7C, B38C

Wi-Fi

 Dual Band Wi-Fi 802.11 a/b/g/n/ac 2.4 GHz + 5 GHz 2×2 MIMO

 Up to 32 clients

Ethernet

1×10BASE‑T/100BASE‑T/1000BASE-T

Chipset

Qualcomm MDM9240-1 1.2 GHz + RealTek RTL8197FS-VE5 1 GHz, RTL8812FR, RTL8211F

Memory and Storage

256 MB ROM + 256 MB RAM

Throughput

 LTE Cat. 7: up to 300 Mbps(1) DL and up to 100 Mbps(1) UL

 DC-HSPA+: up to 42 Mbps(1) DL and up to 5.76 Mbps(1) UL

 EDGE: up to 236 Kbps(1) DL and up to 118 Kbps(1) UL

 Ethernet: up to 1 Gbps

 Wi-Fi 802.11n 2.4 GHz 2×2 MIMO: up to 300 Mbps(2)

 Wi-Fi 802.11ac 5 GHz 2×2 MIMO: up to 867 Mbps(2)

LED

Power, Wi-Fi, Network, Signal

Keys and Ports

 Power Key, WPS Key, Reset Button

 Micro-SIM slot (3FF)

 2×TS9-2.5 for External LTE antenna(3)

 Power Supply Port

 1×Ethernet (RJ45)

 Micro-USB (4)

Features

 Connection Backup and 24/7 Internet Access

 Traffic Shaper (QoS)

 PPPoE, Static IP

 MAC Clone

 IPv4/IPv6/Dual Stack

 TCP/IP, UDP, DHCP

 Dynamic DNS (DDNS)

 MAC/URL/IP-filtering

 NAT, DMZ, Port Forwarding, UPnP

 VPN pass-through

 Guest Wi-Fi SSID

 WebUI, Mobile App for Android and iOS

 SMS, USSD

 Software Update (FOTA)

Dimensions

145×100×89.3 mm*

Weight

325 g*

Power Supply

12V1А DC for 220V50Hz AC

Box Contents

 CPE

 Power Supply 12V1A

 Quick Guide

 PSI

 Ethernet (RJ45) Cable – optional

 Warranty Card – optional

Available Colors

White

Materials

Plastic

WebUI Languages

English

Russian – optional

Supported OS

 Microsoft Windows 7, 8, 8.1, 10

 Apple Mac OS X 10.6 – 10.11, macOS 10.12 – 10.15

 Linux

 Apple iOS

 Android

Supported Browsers

Edge, IE, Safari, Firefox, Opera, Chrome

Environmental Conditions

 Operation temperature from 0 to +40 °С.

 Operation humidity from 10% to 80% without condensation.
